Special Applications & MV Lineout

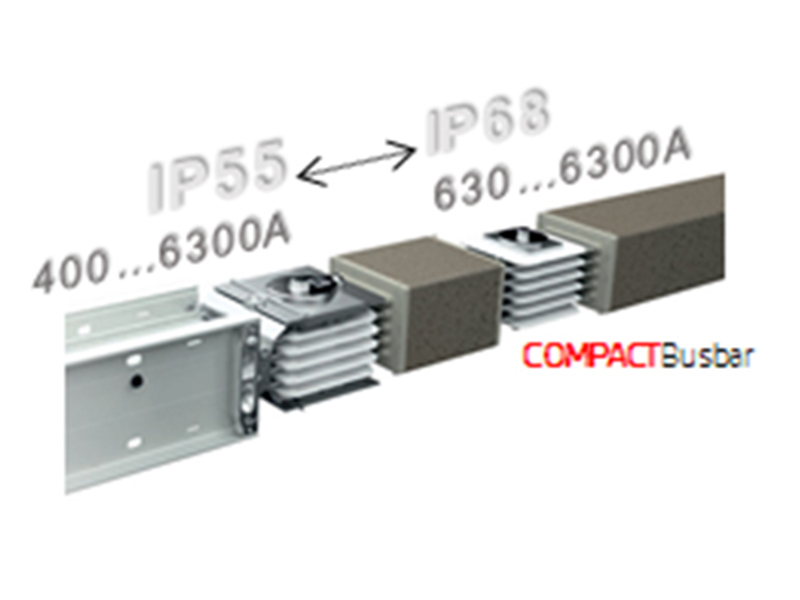

Compact Busbar Distribution System 630…6300 A
Features:
Fire and Earthquake Resistance
EX – Protected

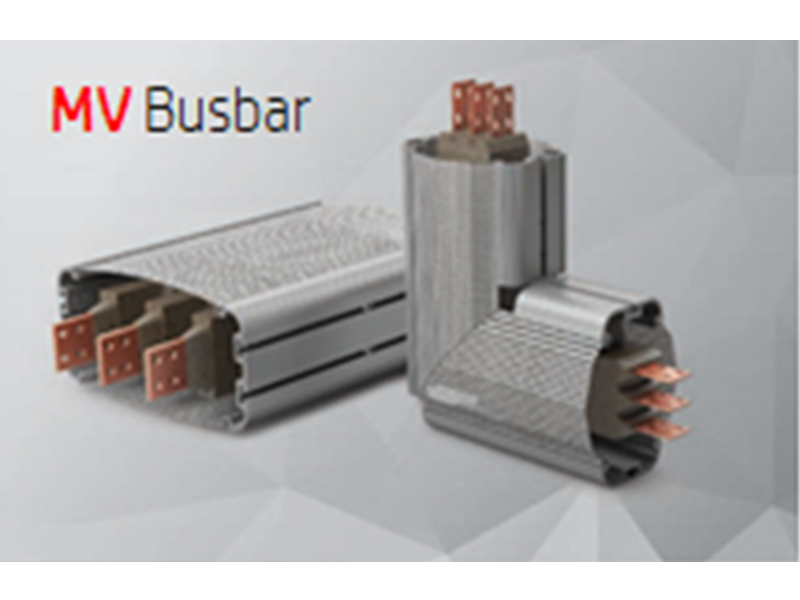

Medium Voltage Busbar Distribution System 950…5700A
The MV Series Busbar Systems is offered with 12 kV and 24 kV variants. It offers safe and efficient power transmission. MV Series are manufactured in a single body with Al or Cu conductors embedded in a composite material of
epoxy resin and pure silicon insulation which is a composite material of epoxy and pure silicon which gives protection against arduous environments and high impact.
Features:
12 kV and 24 kV variants
Composite body
Ex-proof
IP68 protection degree

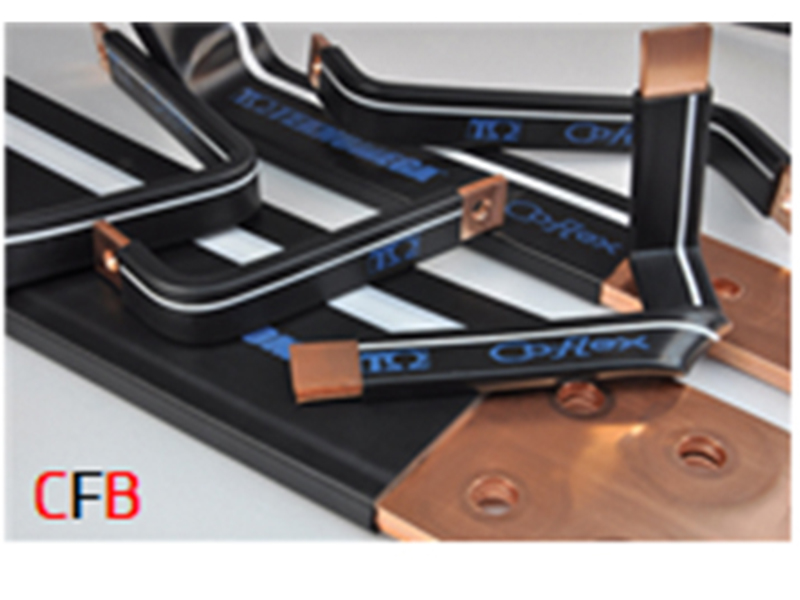

Insulated Copper Flexible Bars (CFB)
The perfect conductor to connect:
main power supply and electrical equipment (switches, disconnectors, etc.)
busbar and cabinet / panel board
transformer and busbar
CFB are designed with electrolytic copper laminates, covered with a highly resistant and self extinguishing insulation which guarantees an excellent electrical insulation, even with humid or aggressive environment, or high temperature.
Electrical connections using CFB are much easier than using standard methods such as cable or plain busbar.
